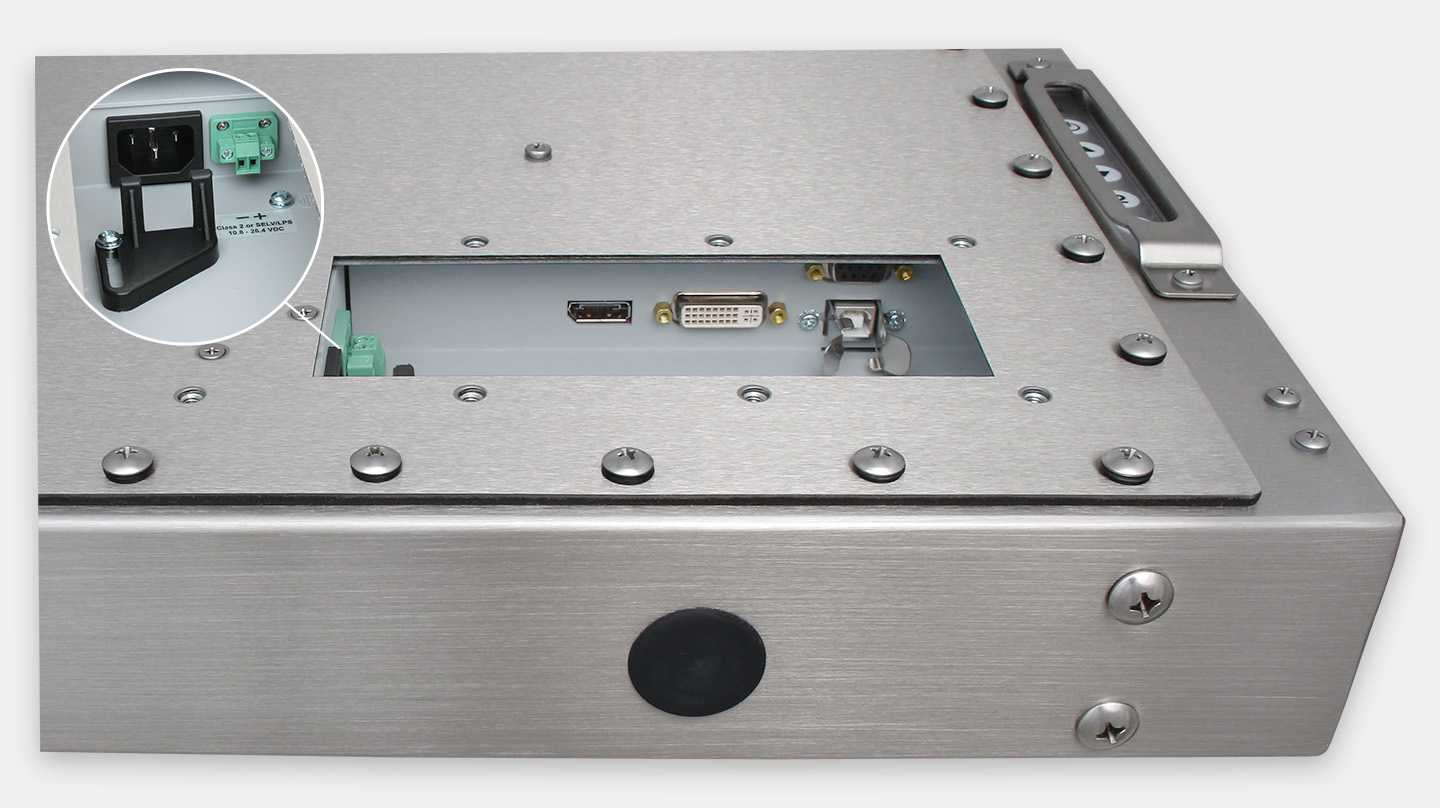

19" Universal Mount Industrial Monitors and IP65/IP66 Rugged Touch Screens, cable exit view
Handle for Universal Mount Monitors

Data Sheets

Support Items

Drivers

Our Universal Mount Monitors form the core of the modular Hope Industrial Workstation System. Using the included VESA or yoke mount points, the fully enclosed display can be mounted in a limitless range of configurations depending on the individual needs of each user’s application. Cable connections are protected inside the monitor cavity, with cables exiting through a variety of sealed, wash-down rated cable exit glands.

Optional sealed industrial keyboards can be added to create a complete HMI solution, and fully sealed PC or thin client enclosures allow most standard computer hardware to be mounted directly to the workstation. Industrial KVM extender options allow placement of the PC up to 300 m away using shielded CATx cable.

Our Workstation Configuration Guide explains all of the options in more detail.

Rear Views

Rear views of IP65/IP66 Rated 19" Universal Mount Monitors showing Industrial Enclosure features and options

Cable Exit Options

Visit our Cable Exit Plate page for detailed specifications and available options.

Display

  • Size – 19.0″ diagonal
  • Native Resolution – SXGA (1280 x 1024, 5:4 aspect ratio)
  • Brightness (white) – 250 nits (cd/m2) max
  • Contrast Ratio – 1000:1
  • Backlight (typical) – LED; 40,000 hour brightness half-life
  • Type – Thin-film Transistor (TFT) Active Matrix Liquid Crystal
  • Image Size (W x H) – 374.8 mm x 299.8 mm
  • Plug and Play – DDC1/2B compatible
  • Minimum Resolution – VGA (640 x 480)
  • Pixel Pitch – 0.293 mm x 0.293 mm
  • Number of Colours – 16.7 million
  • Viewing Angle (Hori/Vert), typical – 178° / 178°

Window Options

  • Single-Touch Resistive Touch Screen
    • Technology – 5-wire single-touch resistive sensor. Pressure sensitive for use with any stylus or glove. Polyester cover sheet with anti-glare acrylic hard-coat. Single-touch gestures supported.
    • Interface – USB or RS-232 interface to computer (both connections are included on touch screen monitors)
    • If the touch screen will be exposed to sunlight, whether direct or indirect, please choose our glass-armoured resistive or PCAP touch solutions that will not lose clarity over time as a result of UV rays; call for details.
  • Fully Tempered Glass Window (non-touch) – 2.8 mm to 3.0 mm glass window with 90% gloss anti-glare surface finish. Fully tempered to ASTM C1048 standards for higher impact and scratch resistance. Passes ball-drop test, 500 g at 1.2 m.
  • Optional Acrylic Window (non-touch) – acrylic glazing provides a scratch-resistant and shatter-resistant window; anti-reflective coating with 99% reduction of glare; thermal insulating and anti-static; 99% UV blocking

Video

  • Input Connectors – DVI-I; DisplayPort
  • Compatible Inputs Using Optional Adapter (call for details)
    • HDMI (via DVI to HDMI adapter); part number: ADAP-DVIDM-HDMIF
    • Mini DisplayPort (via Mini DisplayPort to DisplayPort adapter); part number: ADAP-DPM-MDPF
    • VGA (via included VGA to DVI adapter); part number: CVGA-DVI
    • BNC (via 5-wire BNC to HD-15 adapter); part number: C20A
  • Input Signal Formats
    • RGB Analogue video, 0.7/1.0 Vp-p, 75 Ohms; Compatible sync modes: Separate H/V sync, Composite sync, Sync on Green
    • DVI
    • DisplayPort 1.1
    • NTSC/PAL composite input available; call for details
  • Horizontal Scan – 31-80 kHz
  • Vertical Scan – 50-75 Hz
  • Common Supported Video Standards
    • SXGA – 1280 x 1024 @ 60 (native), 75 Hz
    • 1280 x 960 @ 60, 75 Hz
    • 1024 x 768 @ 60, 70, 75 Hz
    • 800 x 600 @ 56, 60, 72, 75 Hz
    • 720 x 400 @ 70 Hz
    • 640 x 480 @ 60, 75 Hz
    • See user manual for a full list of resolution and timing compatibility
  • Response Time (typical) – 14 ms

Electrical

  • Power Input
    • AC Power Input – 100 to 240 VAC, 0.6/0.3 A, 60/50 Hz
    • DC Power Input – 10.8 to 26.4 VDC, 2.3 to 0.9 A, Class 2 or SELV/LPS
  • Power Consumption (typical) – 13.3 W
  • Power Consumption (standby mode) – < 2 W

Environmental

  • Enclosure Rating – IP65/IP66 or IP22 when fitted with required cable exit plate; NEMA 2, NEMA 4, or NEMA 4X (depending on cable exit). More on IP/NEMA ratings.
  • Operating Temperature – 0° to 50°C
  • Storage Temperature – -20° to 60°C
  • Humidity – 20% to 90% non-condensing
  • Operating Shock – 15 g, 6 msec, half-sine
  • Operating Vibration (sine) – 1.0 g, swept sine 9-500 Hz
  • Transport Vibration (random) – 0.1g² / Hz, 10-200 Hz; 0.03g² / Hz, 200-2000 Hz
  • Altitude – Operating: up to 3.05 km; Non-operating: up to 12.19 km
  • Environmental Sulphur Gas Protection Option – includes glass-armoured touch screen, vapour-phase corrosion inhibitor, and extensive sealing; call for details. More on Sulphur Gas Protection.

Functional

  • Panel Controls (rear access) – Power, Right, Left, SEL, Menu
  • OSD (On Screen Display) Controls – Backlight, Contrast, Saturation, Sharpness, Color Balance, User Color, Gamma, Aspect Ratio, Over Scan, VGA Settings, Input, Auto Scan, Advanced Setup, Reset to Factory Defaults, OSD, Info

Physical

  • Enclosure Type – self-contained enclosure
  • Enclosure Material – black powder-coated carbon steel enclosure (with black powder-coated aluminium rear cover) or stainless steel enclosure
  • VESA Mounting Holes – standard on all models – 100mm square, M4 threads
  • Side Mounting Holes – standard on all models
  • Enclosure Dimensions (W x H x D) – 467.4 mm x 397.5 mm x 82.6 mm
  • Net Weight
    • Black Powder-Coated Carbon Steel Models – 8.16 kg
    • Stainless Steel Models – 9.53 kg
  • Shipping Weight
    • Black Powder-Coated Carbon Steel Models – 9.53 kg
    • Stainless Steel Models – 10.89 kg

Compliances and Certifications

  • Electrical
  • Reliability
  • Environmental
  • Enclosure
  • Hazardous Locations
    • I.T.E. Listed for Class I, Division 2 for Groups A, B, C, and D; Class II, Division 2 for Groups F and G; Class III
    • Temp Code T5 (File No. E334953) per ANSI/ISA-12.12.01-2015 and CAN/CSA C22.2 No. 213-15
    • Note: Hope Industrial Systems provides wiring and conduit that complies with the U.S. National Electric Code but cannot rate wiring or conduit methods for hazardous locations, as these must be locally inspected and approved. The customer must install their hazardous location rated monitor in accordance with the applicable electrical codes for their location.

Cable Exit Options

  • Compression Gland – cables exit through compressed polyurethane foam or EPDM rubber and may be repositioned by the user. IP65/IP66 or IP22 options available.
  • 28 mm Conduit – cables exit through flexible conduit. Up to 7.0 m conduit length. Sealed to IP65/IP66 standards.
  • Compression Gland with Conduit – cables exit through flexible conduit. Up to 7.0 m conduit length. Cables for nearby peripherals (mouse, keyboard, scanner) can exit through compressed EPDM rubber and may be repositioned by the user. Sealed to IP65/IP66 standards.
  • Cover Plate with Pilot Hole – IP65/IP66-rated cover plate with pilot hole for use with customer-supplied cable exit gland.

Optional Workstation Components

19" Universal Mount Monitors - pricing below is for monitor only. Base configuration pricing above includes monitor, basic cover plate, and 1.8m cables.
Enclosure MaterialWindow OptionPart NumberPrice
Stainless SteelSingle-Touch Resistive Touch ScreenHIS-UM19-STVI$1,510£1,200€1,4701.470 €HIS-UM19-STVI
Glass (non-touch)HIS-UM19-SGVI$1,390£1,105€1,3501.350 €HIS-UM19-SGVI
Acrylic (non-touch)HIS-UM19-SAVI$1,400£1,115€1,3601.360 €HIS-UM19-SAVI
Black Powder-Coated Carbon SteelSingle-Touch Resistive Touch ScreenHIS-UM19-CTVI$1,260£1,000€1,2251.225 €HIS-UM19-CTVI
Glass (non-touch)HIS-UM19-CGVI$1,140£905€1,1101.110 €HIS-UM19-CGVI
Acrylic (non-touch)HIS-UM19-CAVI$1,150£915€1,1201.120 €HIS-UM19-CAVI
